HVS-1

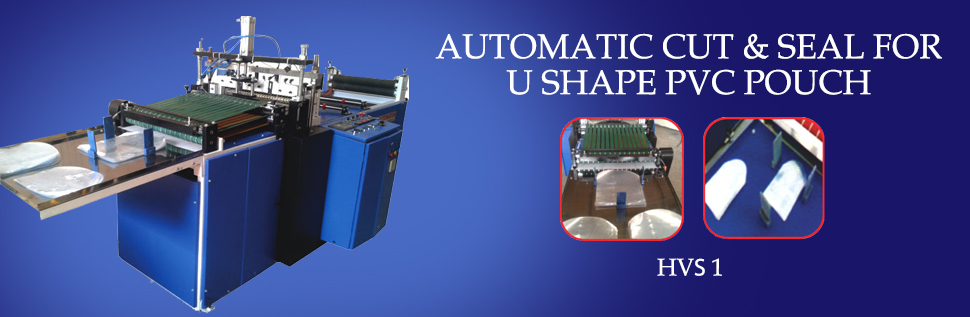

| PVC Shrink 'U' Shape Automatic Sealing & Cutting Machine | |
|---|---|
| Technical Data | |
| Sleeve Width | 60 mm to 250 mm / 100 mm to 380 mm / 120mm to 500 / 200 to 600 (11model) |
| Sleeve Length | 120 mm to 1500 mm / 175 mm to 700 mm |
| Film Thickness | 22 Mic. To 45 Mic. |
| Out Put | 60,000 / 1,20,000 / 3,00,000 / 5,00,000 Pcs. / Day. DEP. On Mic. & Length |
| Control Panel | PLC Base with Digital Screen |
| Drive | Servo Drive |
| Bearing | "SKF" |
| Die | Suitable Material with Heater |
| Sealing | Pneumatic Systems |
| Un winder Shaft | Suitable Material with Movement Systems |
| M/C Cover | All Cover Powder Coated |
| M/C Dimension | L3500mm – H1200mm – W1100mm |
| Static | Three Strip |
| Material Feeding | Dancing Systems with Two / Four Sensor |
