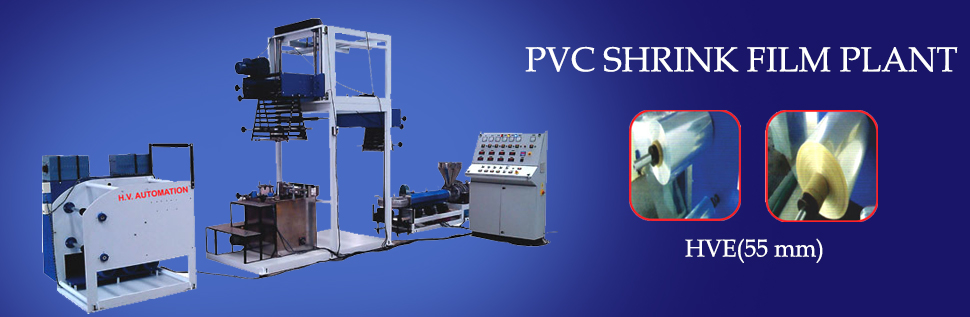

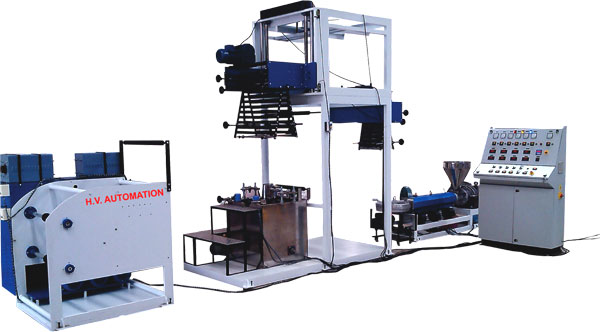

PVC Shrink Film Plant


HVE(55 mm)



Technical Data PVC Shrink
Film Plant
HVE 38 MM
(Hot Water)
PVC Shrink
Film Plant
HVE 45 MM
(Hot Water)
PVC Shrink
Film Plant
HVE 55 MM
(Hot Water)
PVC Shrink
Film Plant
HVE 65 MM
(Hot Water)
Suitable Material R-PVC R-PVC R-PVC R-PVC
Film Thickness 25 to 45 Mic. 25 to 45 Mic. 25 to 45 Mic. 25 to 45 Mic.
Film Width 60 to 250 mm 120 to 330 mm 160 to 500 mm 250 to 700 mm
Out – Put 15 Kg./Hrs. 25 Kg./Hrs. 35 Kg./Hrs. 45 Kg./Hrs.
   Screw Diameter    38 mm    45 mm    55 mm    65 mm
   L/D Ratio    26.1    26.1    28.1    28.1
   Drive    ACV    ACV    ACV    ACV
   Main Motor    10 HP    15 HP    20 HP    25 HP
   Main Gear Box    HELICAL    HELICAL    HELICAL    HELICAL
   Cooling Blower    0.5 HP    1 HP    1 HP    1.5 HP
   Take-Up Roll    350 mm    550 mm    650 mm    850 mm
   Winder Unit    AC TORQUE    AC TORQUE    AC TORQUE    AC TORQUE
   Connected Load    28 HP    35 HP    45 HP    52 HP
   Bearing    SKF    SKF    SKF    SKF
   Up-Down    3rd NIP    3rd NIP    3rd NIP    3rd NIP
